| Đột quỵ tấm: | 540m M | Số lượng đầu: | 1，2，3，4et |
|---|---|---|---|
| Đầu ra của HDPE: | 85kg/giờ | Vật liệu: | Nhựa |
| Từ khóa: | Máy thổi chai hdpe | Động cơ: | Siemens |
| Màn hình cảm ứng: | Siemens | Kẹp lực: | 120KN |
| Làm nổi bật: | four layer extrusion molding machine,Siemens motor extrusion molding machine,MP 80FD extrusion molding machine |
||

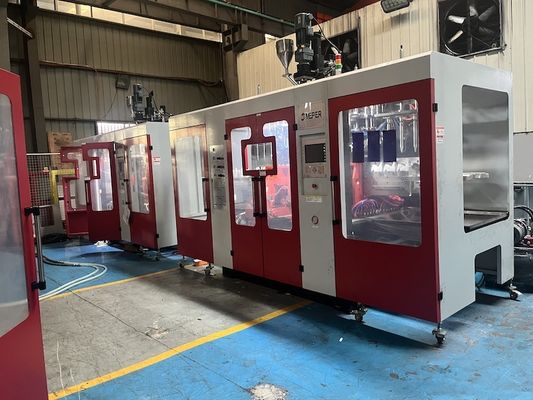

The MP 80FD Extrusion Blow Molding Machine is engineered for manufacturing high-quality hollow plastic products. The process begins with melting plastic resins including HDPE, LDPE, PP, or PVC, then extruding the material into a parison (tubular shape).
The machine then closes a mold around the parison and injects air to expand the plastic to the mold's shape. After cooling, the finished hollow product is ejected, ready for use or further processing.
| 80FDE-4S(100) Specifications | ||
|---|---|---|
| Material | PE | |
| Max Container Capacity | 500ML | |
| Number of Die | 4 sets | |
| Machine Dimension (LxWxH) | 3.82x4x2.5 m | |
| Total Weight | 8.6 tons | |
| Clamping Unit | |
|---|---|
| Clamping Force | 120 kN |
| Platen Opening | 240-600 mm |
| Toggle Stroke | 540 mm |
| Max Mould Size (WxH) | 480x500 mm |
| Extruder Unit | |
|---|---|
| Screw Diameter | 75 mm |
| Screw L/D Ratio | 24 L/D |
| Plasticizing Capacity (HDPE) | 85 Kg/h |
| Screw Heating Zone | 3 zones |
| Screw Heating Power | 15.3 kW |
| Fan Power | 0.14 kW |
| Extruder Motor Power | 22 kW |
| Energy Consumption | |
|---|---|
| Total Power of Machine | 72 kW |
| Power of Oil Pump Motor | 15 kW |
| Air Pressure | 0.6-0.8 Mpa |
| Consumption Compression Air | 1.5 m3/min |
| Consumption Cooling Water | 0.4 m3/min |
The MP 80FD Extrusion Molding Machine is ideal for producing:
